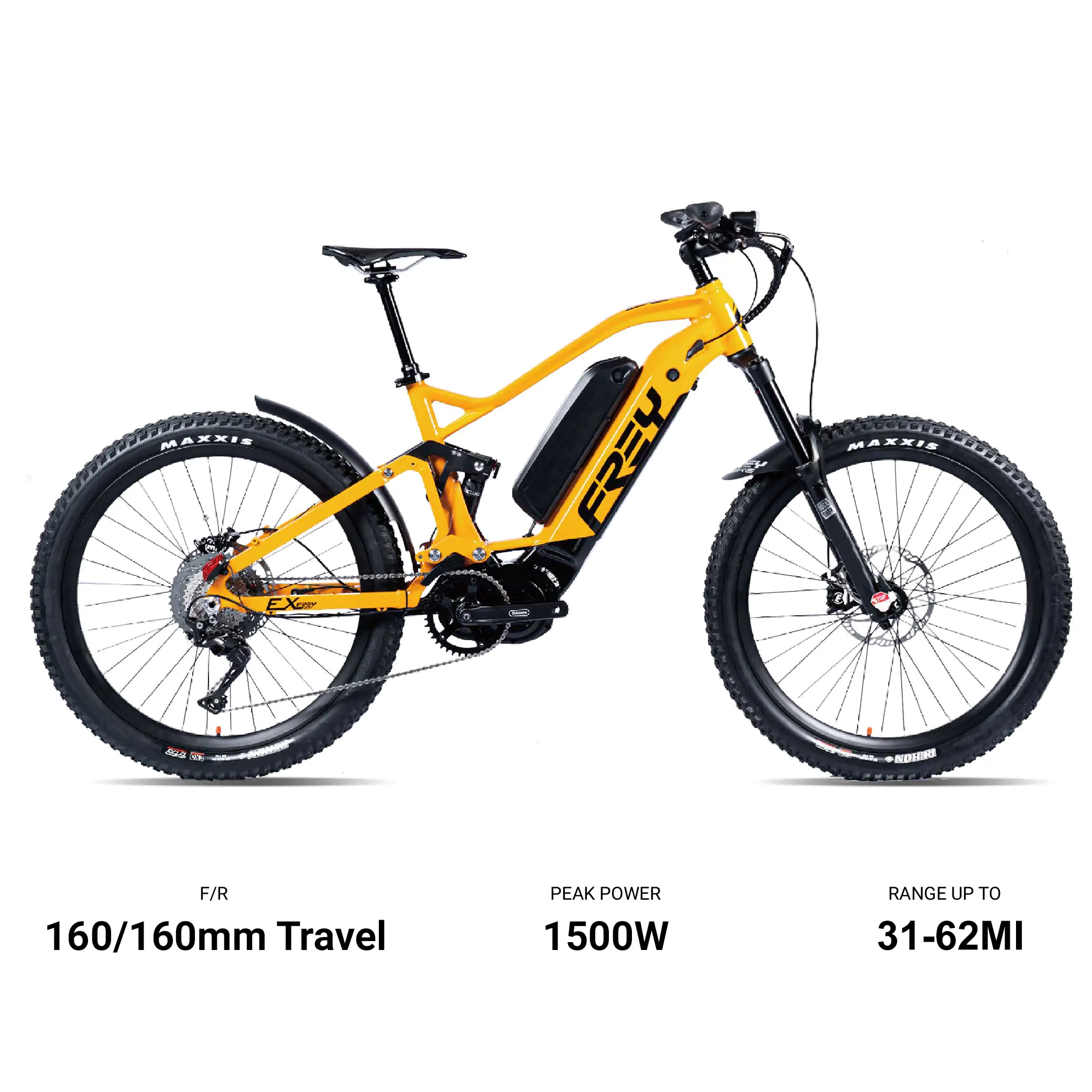

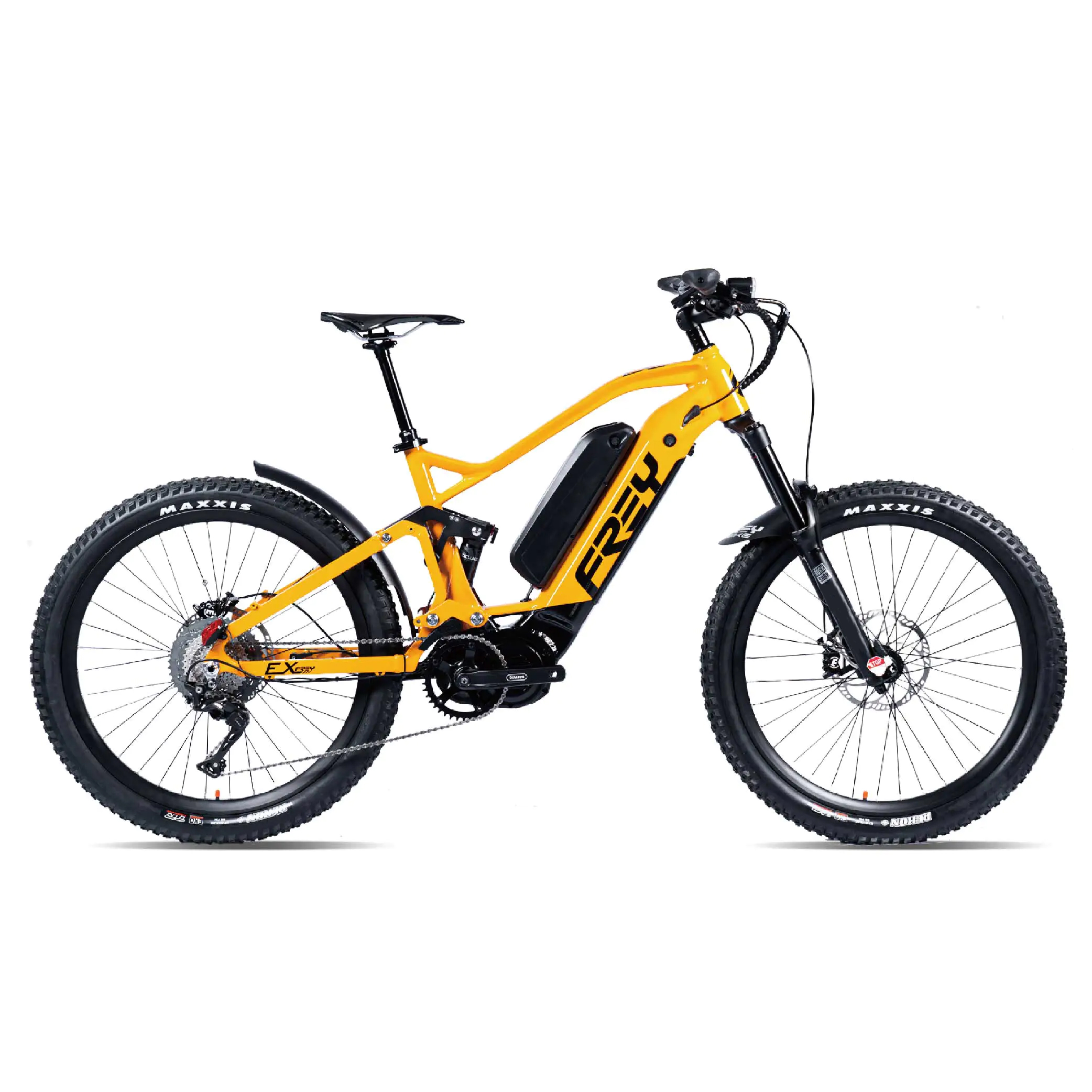

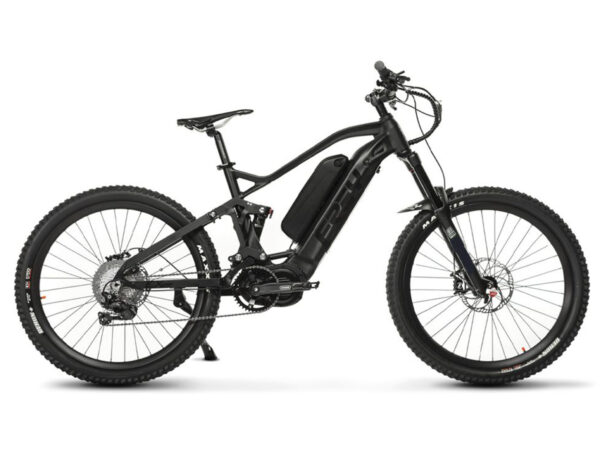

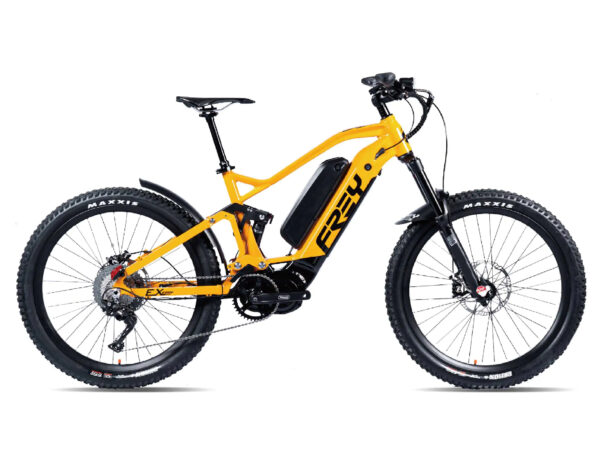

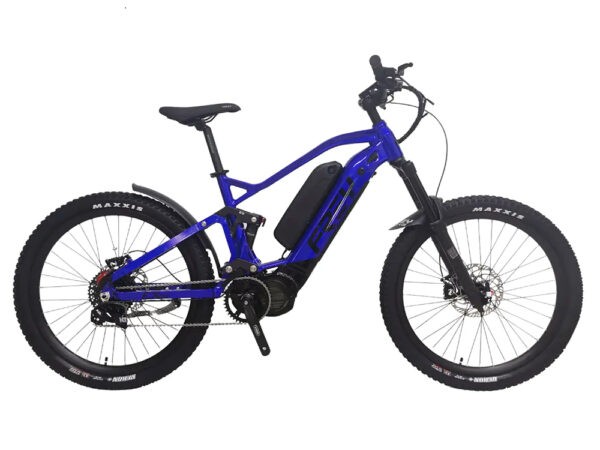

Frey EX:

Powerful enduro ebike, 1000W electric mountain bike with throttle, max speed up to 35mph; mountain ebike with longest range up to 100 miles.

If you like adventure ebikes, FREY EX is an amazing off-road ebike that you must pick!

Enduro bike Geometry:

This enduro ebike has a geometric frame designed with F/160MM R/160MM long frame travel. meet for aggressive enduro biking needs with strong and durable frame to conquer rugged terrains.

Ultra powerful ebike:

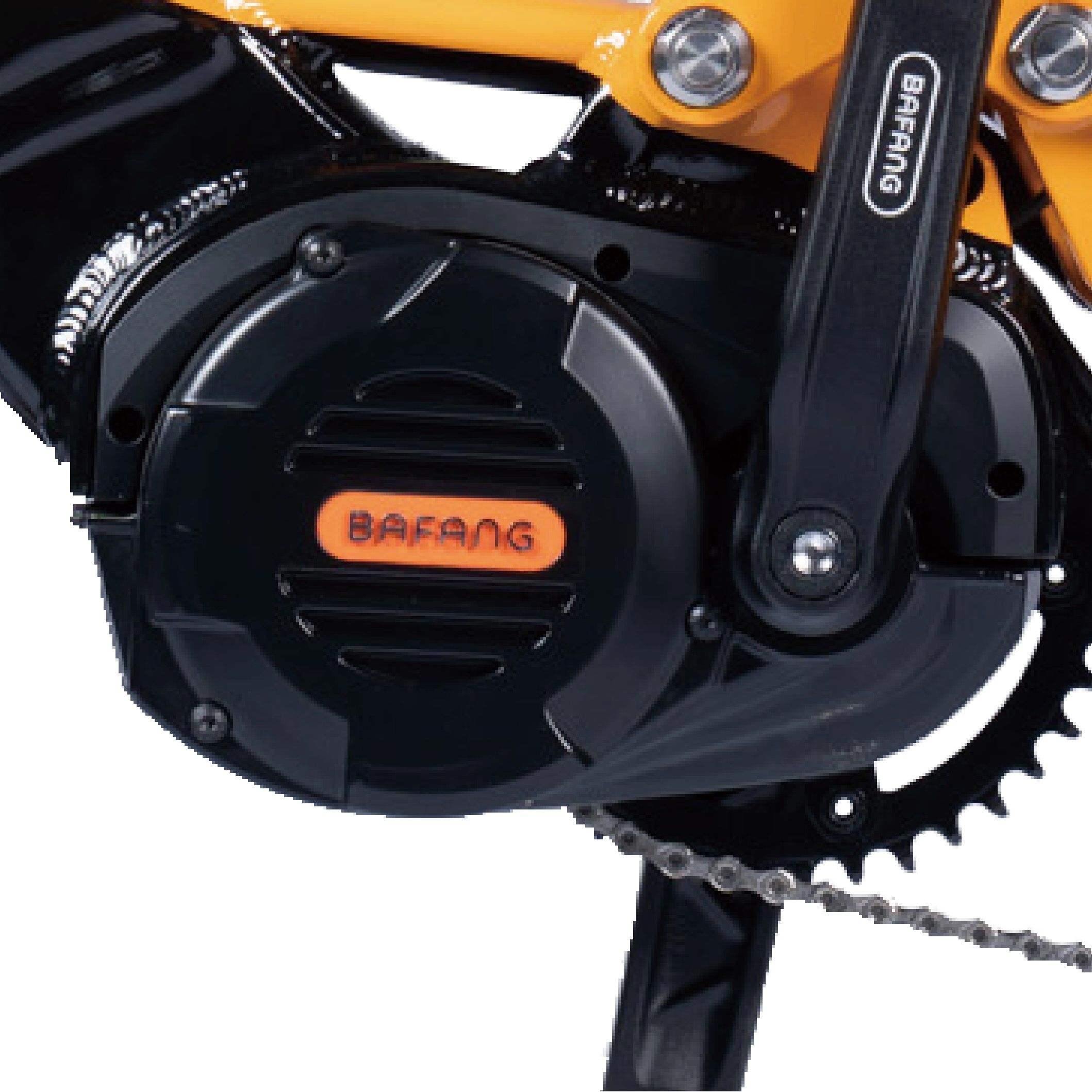

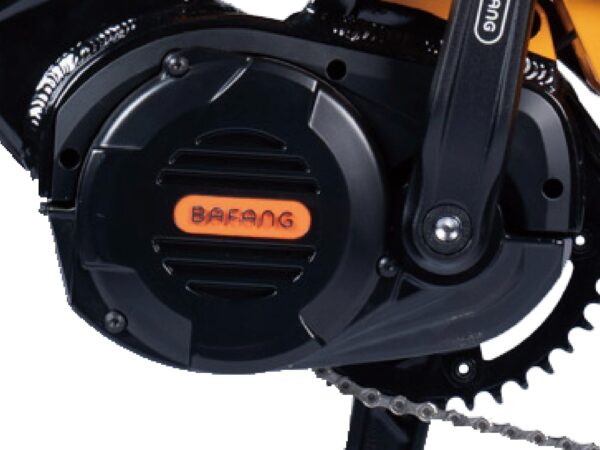

Peak power 1500w Bafang M620 mid-drive motor delivers max160Nm torque, to tackle steep climbs easily while off-road biking, it’s a super all terrain ebike.

Long Range Electric Bike:

Dual battery system with capacity 1344WH, up to 100 miles long range per charge by assistance. EX is a premium powerful long range e mtb bike.

Features

48V28HA

Battery

330lb.

Max.Payload

292.6/27.52.8

Tires

1000w

Bafang Motor M620

Ultra-Long Range

On the first charge, it can cover a distance of 100 miles, with the option for detachable dual high-capacity batteries and a battery cover

Powerful Throttle

It comes with a built-in power throttle, reaching speeds of up to 36 mph in pure throttle mode, and achieving speeds of up to 30 mph with pedal assistance.

The throttle button is especially useful for uphill climbs

Professional bike frame geometry

A uniquely designed frame geometry tailored for an enhanced riding experience, best suited for more demanding mountain biking.

The bike model offers exceptional smoothness, with top-notch safety features and increased durability.

Specs

Motor	BaFang M620 1000W system, 160Nm
Battery	Dual Battery 48V/28AH (1344WH)
Charger	Output 54.6V/3A, AC100-240V
Frame	6061#alloy, 27.5 Trail Geometry, full bearings, 160mm travel
Fork	ROCKSHOX YARI 29*160mm

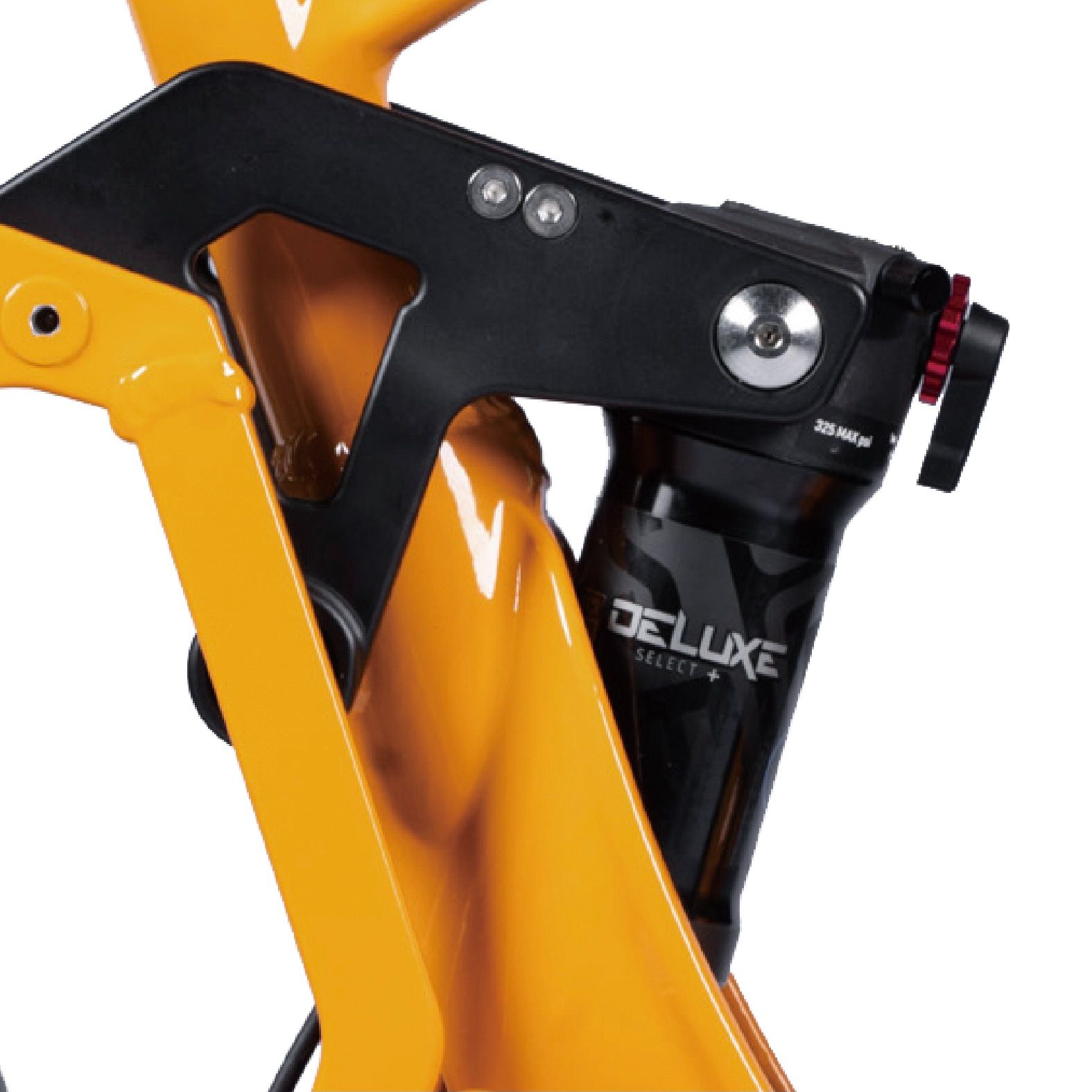

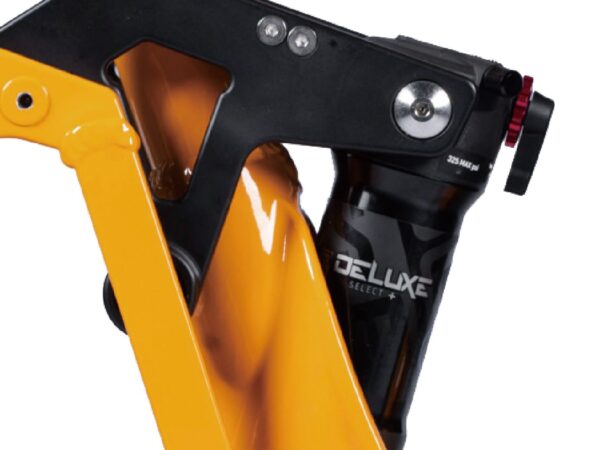

Rear Shock	Rockshox Deluxe 205*65mm
Stem	Alloy, 50mm length
Handlebar	Alloy, 25mm rise, 780mm, 31.8mm clamp
Wheelset	29/27.5″ double-wall alloy rims
Tires	MAXXIS F:29”2.6/R:27.5”2.8
Brakes	Magura MT5e 4-piston 203/203mm
Drivetrain	SRAM NX 11S set
Weight	31kg
Max. payload	120kgs
Size	M, L, XL

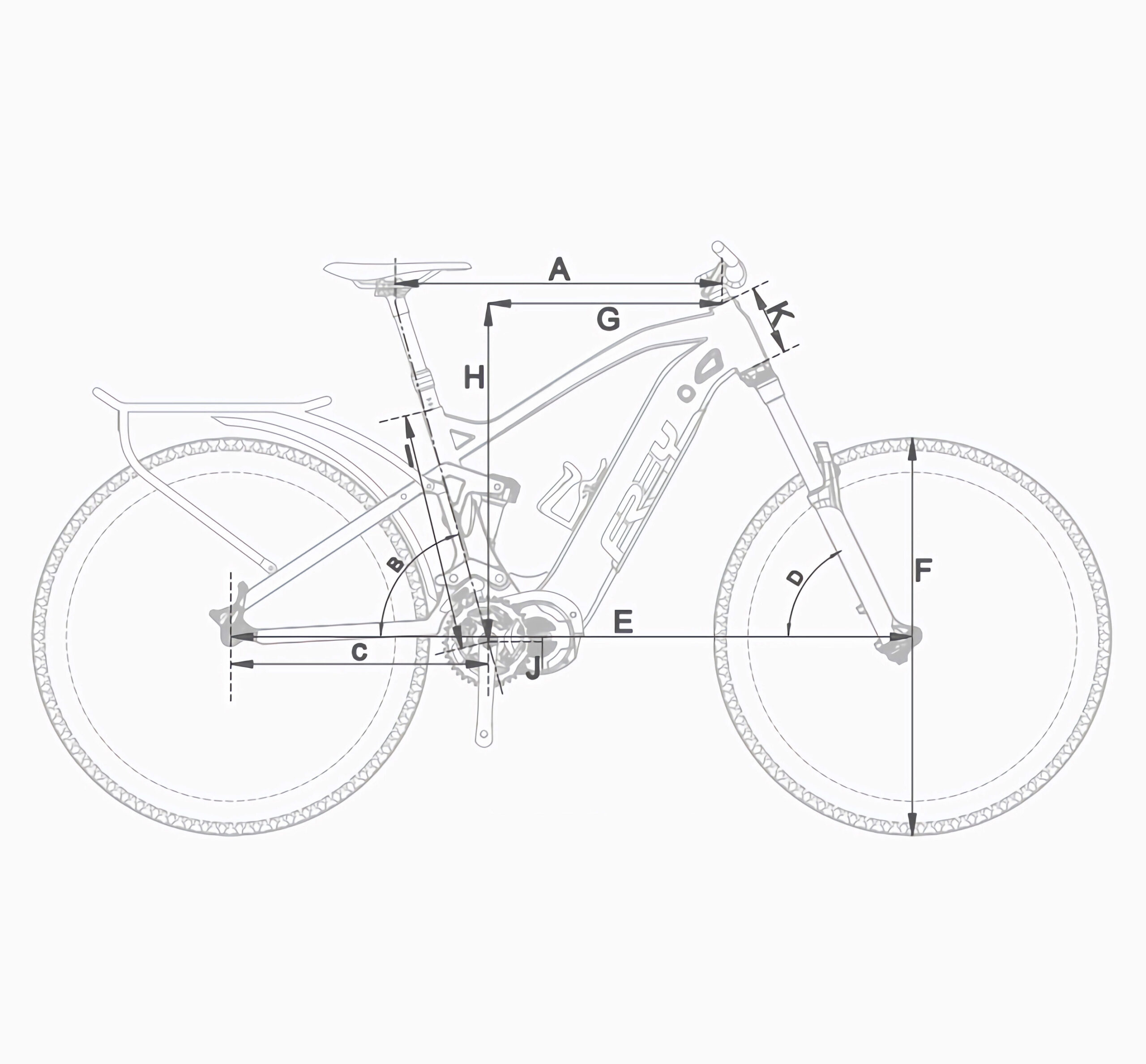

Geometry

All measurements are in millimeters unless otherwise stated.

Geometries Unit: mm
EX BIKE	M	L	XL
A TOP TUBE HORIZONTAL	597.4	630.9	660.9
B SEAT TUBE ANGLE	75°	75°	75°
C CHAINSTAYS	474.2	474.2	474.2
D HEAD TUBE ANGLE	64°	64°	64°
E WHEELBASE	1255	1290	1320
F WHEEL SIZE F/R	29	29	29
G REACH	430.4	461	491
H STACK	622.7	631.7	631.7
I SEAT TUBE	440	460	480
J BB DROP	9	9	9
K HEAD TUBE LENGTH	130	140	140

Sizing

Size	Rider Height	Rider Height
M	165-175cm	5’4″ – 5’9″
L	170-185cm	5’7″ – 6’1″
XL	180-195cm	5’11″ – 6’5″

SCENES

 5/5

I've fallen in love with the FREY EX's long-range capability. The dual-battery system ensures I can enjoy continuous rides without worrying about running out of power. I can reach up to 100 miles on a single charge!

Marco Rossi

 5/5

The geometric frame design of the FREY EX is cleverly done, performing excellently on various terrains. Whether I'm on rugged mountain trails or forest paths, I have confidence in handling my bike.

Maria Schmidt

 5/5

As an adventure enthusiast, I can confidently say that the FREY EX is my favorite electric bike to date. It opens up endless possibilities for exploration, and I've never been disappointed.

Richard Miller

Weight	200 kg
Version	Elite(single inner battery version), Advance(dual battery version), Pro(dual battery enduro version)
SIZE	M, L, XL

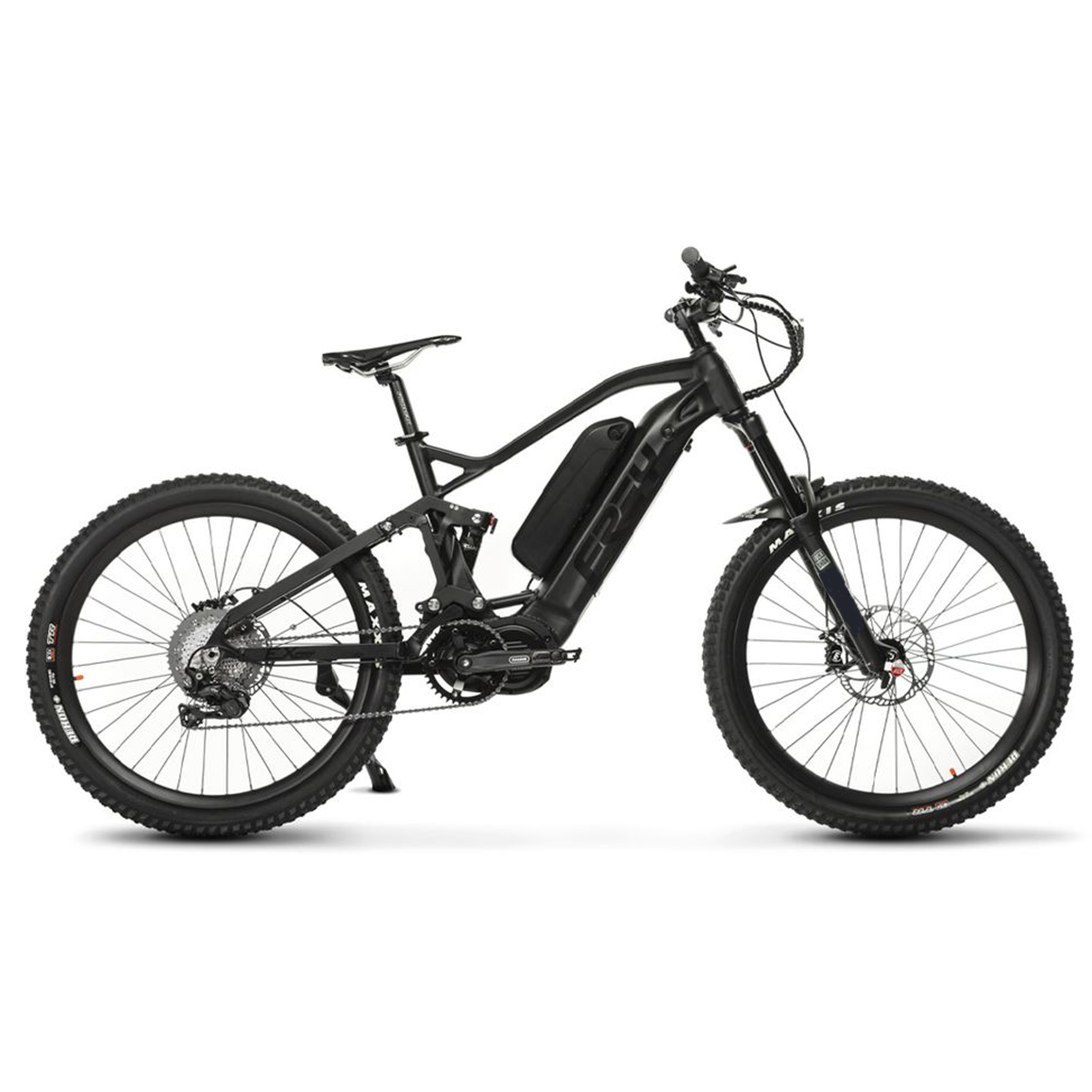

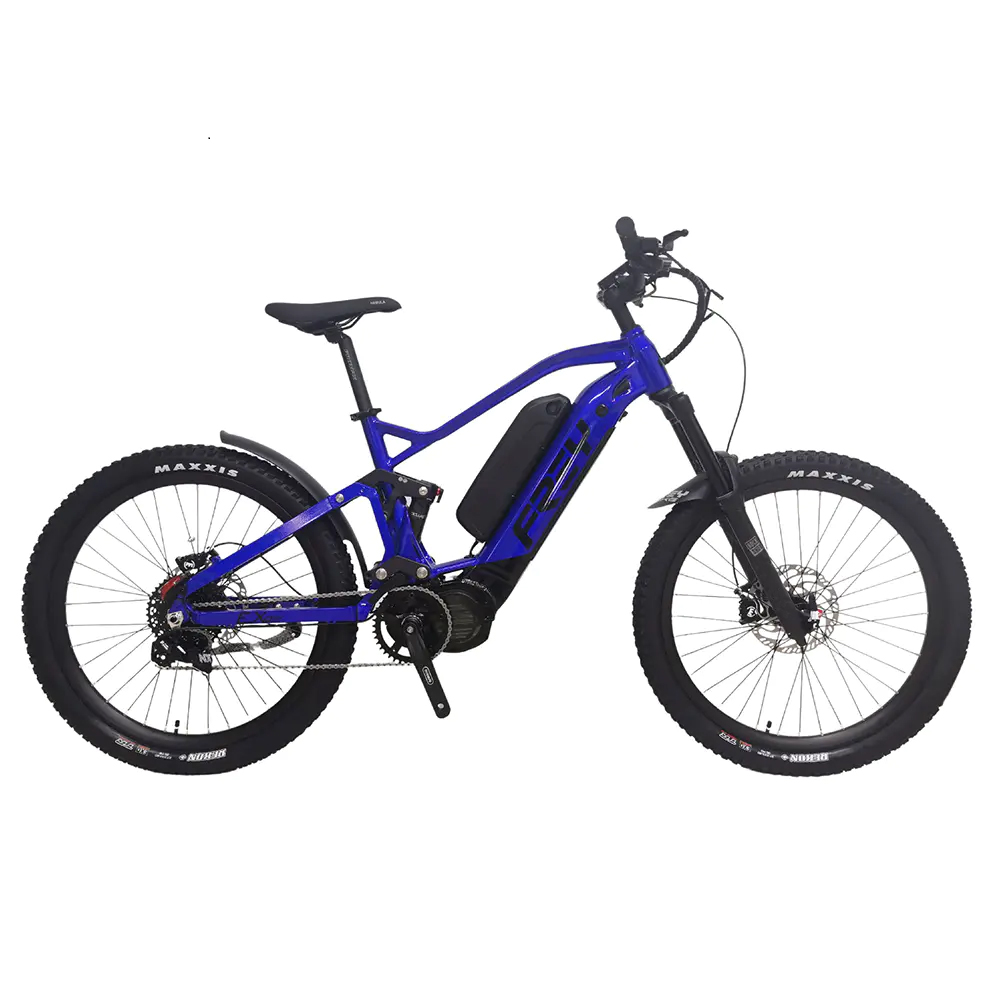

COLOR	Black, Blue, Brown, Orange
