DOP 2.0 27.5*180mm/27.5*170mm
$5,380
Free shipping for an entire e-bike
- Secure Payments
Weight | 200 kg |
---|---|
SIZE | M, L, XL |
COLOR | Frey green, lemon green |
$5,380
Free shipping for an entire e-bike
Incorporates a high pivot point suspension design, enhancing rear wheel traction and ground contact during rear wheel bumps. This provides a more stable body posture during downhill rides on bumpy surfaces.
effectively eliminates pedal kickback, maintaining higher pedaling efficiency.
better tensions the chain and is accompanied by a chain guard, mitigating the risk of chain drop.
“Anti-squat” means: When riding, the frame design effectively reduces or counteracts the compression of the rear shock absorber when the rider pedals. This prevents excessive compression of the rear shock absorber due to the rider’s pedaling, maintaining a stable frame posture and suspension performance, thus enhancing riding efficiency and control. A smooth curve will bring excellent anti-squat effect, see Dopamine 2.0 curve below:
FREY Dopamine 2.0 has a flat anti-squat curve. That is to say, the bike rides squish-free when hammering out of the pedals on flat roads or uphill, pedaling force almost entirely converted into forward motion of the wheels. The video provides an intuitive demonstration of this.
The Frey Dopamine 2.0 has been engineered to eliminate pedal kickback, thereby ensuring smoother rides with enhanced traction, comfort, and handling.
Mixed wheel design to meet different demands without effect on geometry performance, it supports
DOP 2.0 ultra-wide head tube 63.5° ensures stability for your front wheel on the toughest mountain roads.
With its steep angle 76°, DOP 2.0 lets you unleash your power on rugged and uneven terrain.
DOP 2.0 comes with perfect reach range are as follows: M-431mm, L-460mm, XL-492mm.
Designed with a special rear triangle with chainstays 445mm, DOP 2.0 supports different rear wheel diameter include 29” and 27.5” with no change on perfect designed geometry.

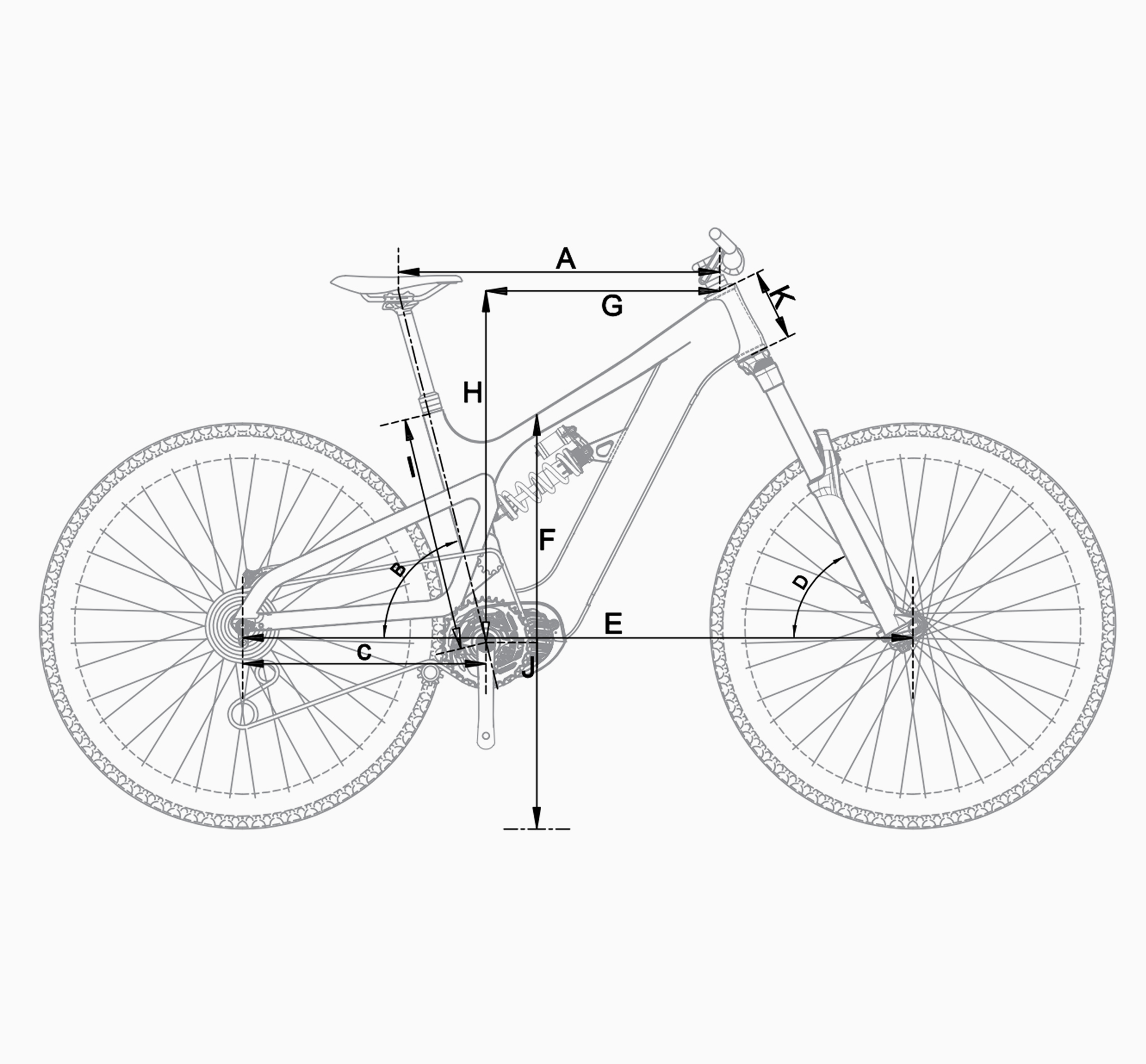

DOP : Fork 27.5″*180/27.5″*170 | M | L | XL | |
---|---|---|---|---|
A TOP TUBE HORIZONTAL | 590 | 621.6 | 656.6 | |
B SEAT TUBE ANGLE | 75.5° | 75.5° | 75.5° | |
C CHAINSTAYS | 443.4 | 443.4 | 443.4 | |
D HEAD TUBE ANGLE | 63.2° | 63.2° | 63.2° | |
E WHEELBASE | 1221.5 | 1254.9 | 1291.8 | |
F SPAN HEIGHT (Inseam) | 793 | 793 | 793 | |
G REACH | 425 | 453.9 | 486.4 | |
H STACK | 636.1 | 645.2 | 654.3 | |
I SEAT TUBE | 400 | 440 | 460 | |
J BB DROP | 27.2 | 27.2 | 27.2 | |
K HEAD TUBE LENGTH | 120 | 130 | 140 |
Motor | BaFang M560 500w ,130Nm |
---|---|
Battery | Downtube 48V15Ah(720Wh) |
Charger | Output 54.6V/3A AC100-240V |
Frame | Aluminum alloy, 27.5 Trail Geometry |
Fork | ROCKSHOX YARI 27.5*180mm |
Rear Shock | Rockshox Deluxe 205*65mm/Rear Wheel Travel 170.mm |
Seat post | KS 900i 31.6 *125/150mm Dropper |
Display | Embedded display |
Drivetrain | SRAM NX11s |
Brakes | MAGURA MT5e |
Handlebars | Alloy,25mm rise,780mm,31.8mm clamp |
Stem | Aolly,50mm length |
Wheelsize | 27.5” |
Tires | MICHELIN FORCE AM 27.5”*2.8 |
Size | M/L/XL |
Max.Payload | 120kg |
Weight | 200 kg |
---|---|
SIZE | M, L, XL |
COLOR | Frey green, lemon green |
