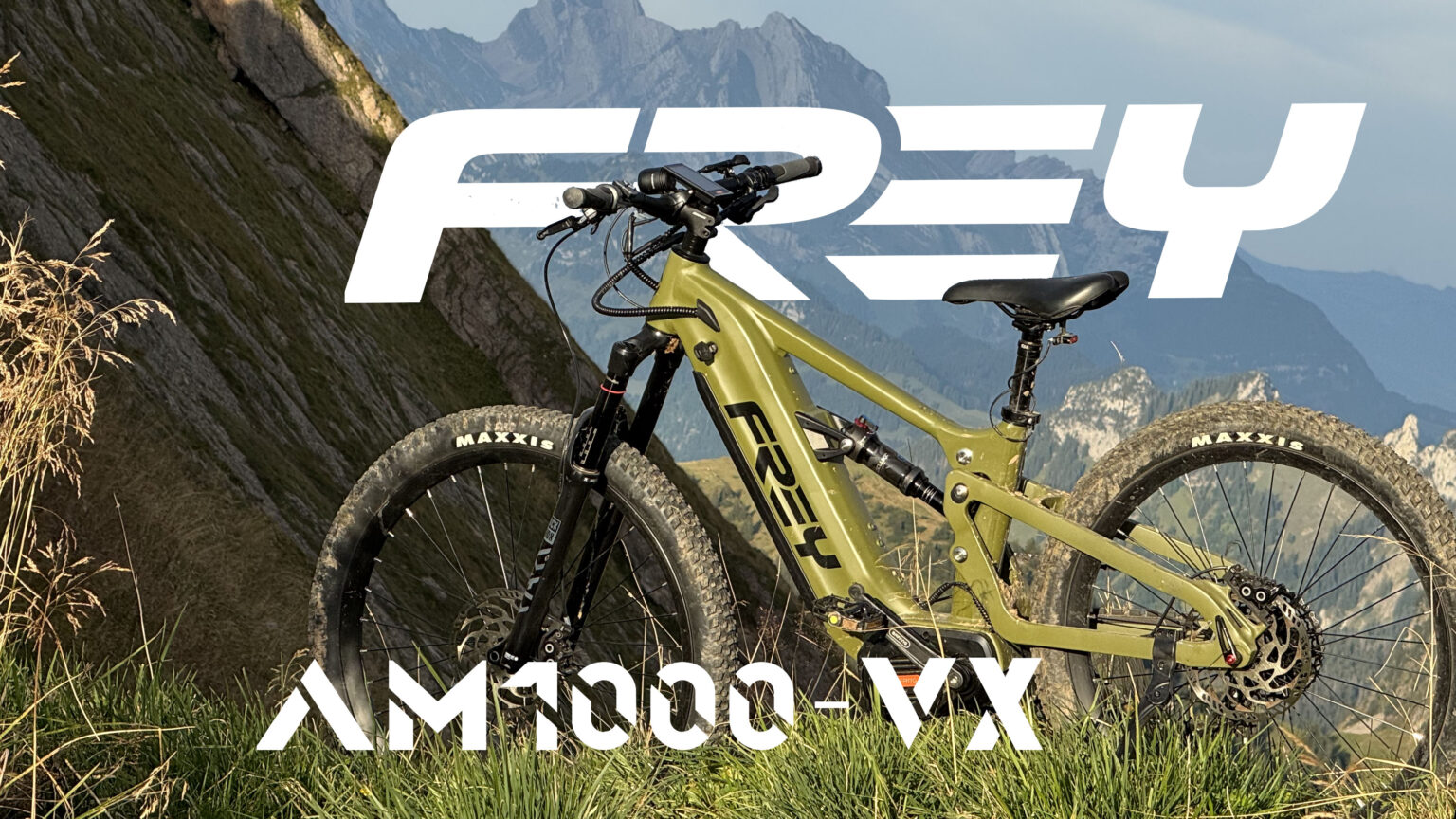

AM1000-VX:
All-terrain full-suspension electric mountain bike, a powerful machine with a max speed of up to 35 mph and a long range of up to 70 miles per charge.
A high-performance all-mountain eBike with throttle, offering power and versatility rarely found in other famous e-MTB brands.
If you like off road ebike adventure in nature, AM1000-VX is a perfect electric mtb strongly recommend you to pick.
Ride Beyond Limits with FREY VX
The Ultimate High-Performance eBike.
Upgraded with a super powerful battery — no more range anxiety.
Features
Ultra Bafang M620 G510:
Rated 1000w peak power 1500w mid-drive motor delivers max160Nm torque, easy to tackle steep climbs while off-road biking, it’s really a powerful e mountain bike.
Power Function:
1. Pure electric by throttle
2. ECO/SPORT pedal assist
3. 6km/h walk mode
Mixed Wheel
Mixed wheel design to meet different demands without effect on geometry performance, it supports
- 29*160mm/27.5*160mm,
- 29*160mm/29*160mm,
- 27.5*180mm/27.5*170mm,
- 27.5*160mm/26*160mm (only option for M size), act as S size.
High Pivot Suspension Structure
Incorporates a high pivot point suspension design, enhancing rear wheel traction and ground contact during rear wheel bumps. This provides a more stable body posture during downhill rides on bumpy surfaces.
Upper idler
effectively eliminates pedal kickback, maintaining higher pedaling efficiency.
Lower idler
better tensions the chain and is accompanied by a chain guard, mitigating the risk of chain drop.
Anti-squat
“Anti-squat” means: When riding, the frame design effectively reduces or counteracts the compression of the rear shock absorber when the rider pedals. This prevents excessive compression of the rear shock absorber due to the rider’s pedaling, maintaining a stable frame posture and suspension performance, thus enhancing riding efficiency and control. A smooth curve will bring excellent anti-squat effect, see Dopamine 2.0 curve below:
Specs
| Motor | BaFang M620 1000W system,160Nm |
|---|---|
| Battery | Downtube integrated 48V25AH(1200WH)/48V30AH(1440) |
| Charger | Output 54.6V/5A, AC100-240V |
| Frame | 6061#alloy, 29/27.5 Trail Geometry, full bearings,160mm travel |
| Fork | Rockshox 29″YARI RL Boost 110*15mm,160mm |
| Rear Shock | Rockshox Deluxe 205*65mm |
| Stem | Alloy,50mm length |
| Handlebar | Alloy, 25mm rise, 780mm, 31.8mm clamp |
| Wheelset | 29/27.5″ double-wall alloy rims |
| Tires | Maxxis 29*2.6/27.5*2.8″ Rekon+ |
| Brakes | Magura MT5e 4-piston 203/203mm |
| Drivetrain | SRAM NX 11S set |
| Weight | 33kgs |
| Max. payload | 120kgs |
| Size | M, L, XL |
Images are for reference only. Final specifications are based on the official configuration sheet.
Geometry
All measurements are in millimeters unless otherwise stated.
| DOP:Fork 29″*160/29″*160 | M | L | XL | |
|---|---|---|---|---|
| A TOP TUBE HORIZONTAL | 598.7 | 626.24 | 655 | |
| B SEAT TUBE ANGLE | 75° | 75° | 75° | |
| C CHAINSTAYS | 464.28 | 464.28 | 464.28 | |
| D HEAD TUBE ANGLE | 63° | 63° | 63° | |
| E WHEELBASE | 1253.38 | 1269.98 | 1300.63 | |
| F SPAN HEIGHT (Inseam) | 759 | 759 | 759 | |
| G REACH | 434.3 | 455 | 481 | |
| H STACK | 645.8 | 641.28 | 650.2 | |
| I SEAT TUBE | 400 | 440 | 460 | |
| J BB DROP | 30 | 30 | 30 | |
K HEAD TUBE LENGTH O SPAN HEIGHT(Inseam) | 135 797.8 | 130 821.5 | 155 817.5 |
Sizing
| Size | Rider Height | Rider Height |
|---|---|---|
| M | 165-175cm | 5’4″ – 5’9″ |
| L | 170-185cm | 5’7″ – 6’1″ |
| XL | 180-195cm | 5’11″ – 6’5″ |
