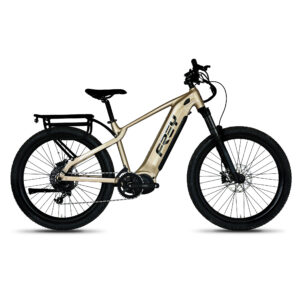

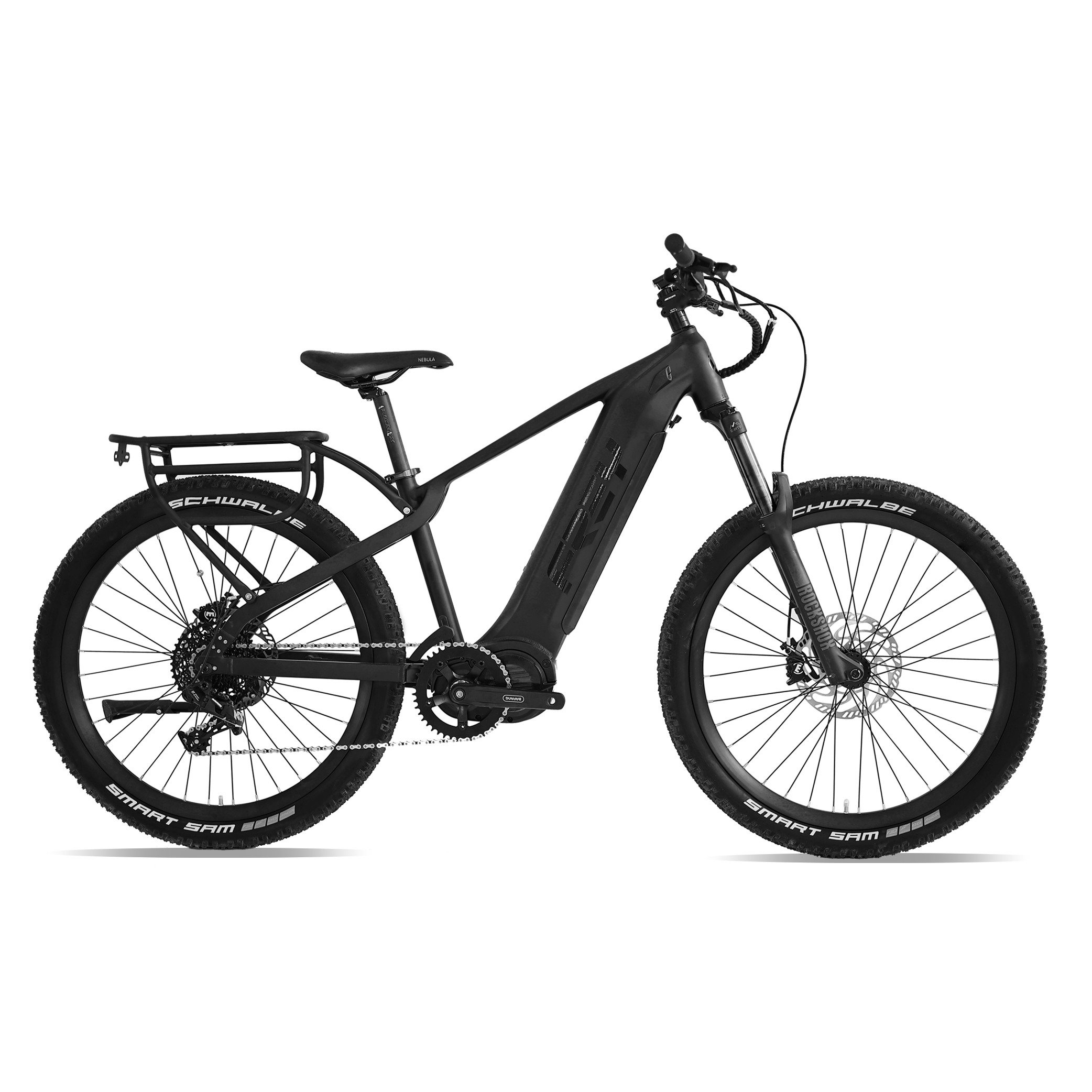

HT1000 V2 :

Features fully upgraded

Introducing the all-new HT1000 V2 eBike with redesigned upgrades, featuring an expanded battery capacity!

Enjoy smooth rides with quiet operation and enhanced durability.

Supports large chainrings, up to 46T.

Freedom to choose the wheel diameter that suits you best.

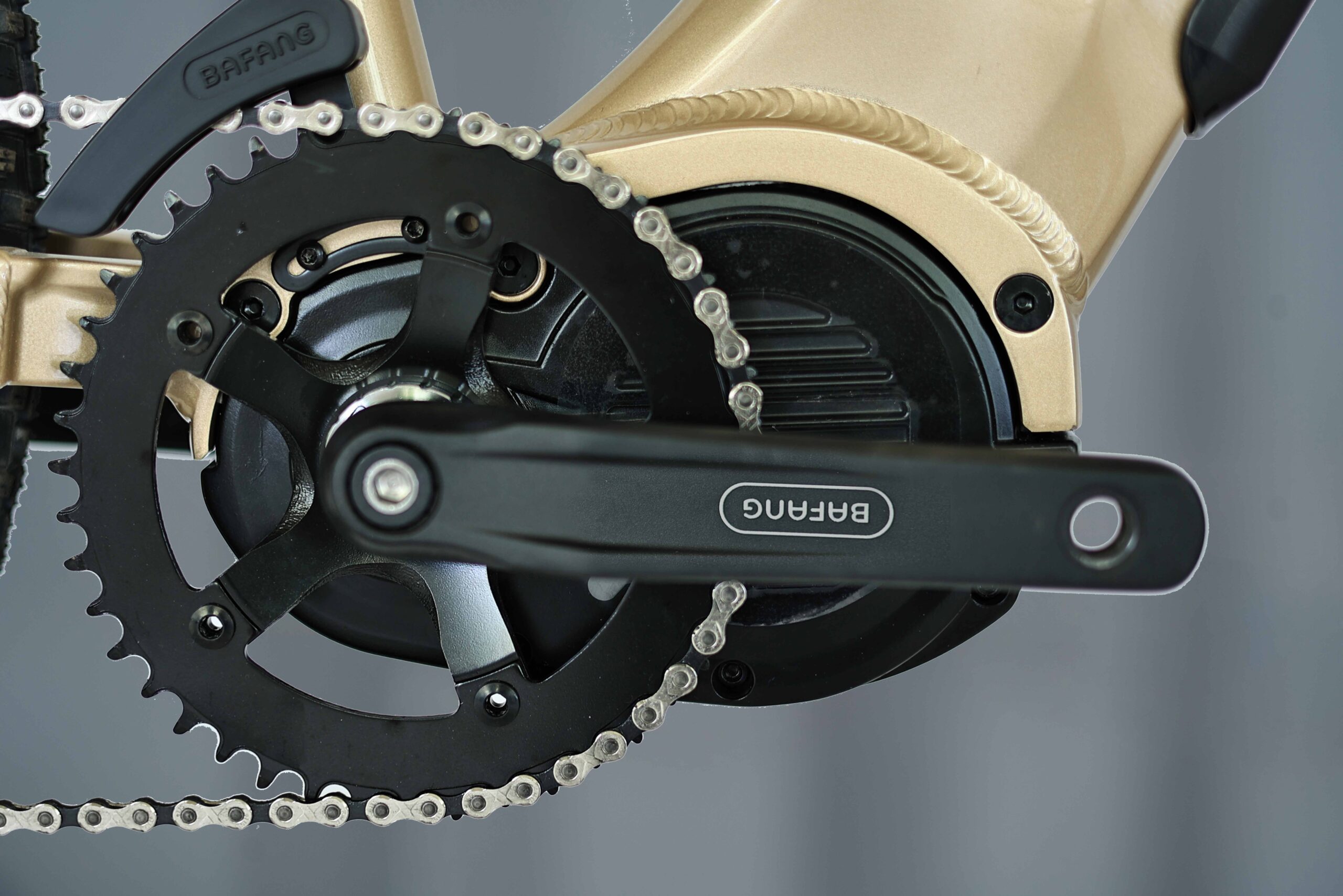

Motor	BaFang M620 1000W system, 160Nm
Battery	Downtube integrated 48V21AH (1008WH)/48V30AH(1440)
Charger	Output 54.6V/5A, AC100-240V
Frame	FREY patented design
Fork	Rockshox Recon RL Boost 110*15mm
Rear Shock	No
Stem	Alloy, 50mm length
Handlebar	Alloy, 25mm rise, 780mm, 31.8mm clamp
Wheelset	27.5″ double-wall alloy rims
Tires	27.5* 2.8″ mountain tires
Brakes	Tektro HD E730 4-piston 203/203mm
Drivetrain	SHIMANO ALIVIO -9-speed
Weight	31KG
Max. payload	150kgs

All measurements are in millimeters unless otherwise stated.

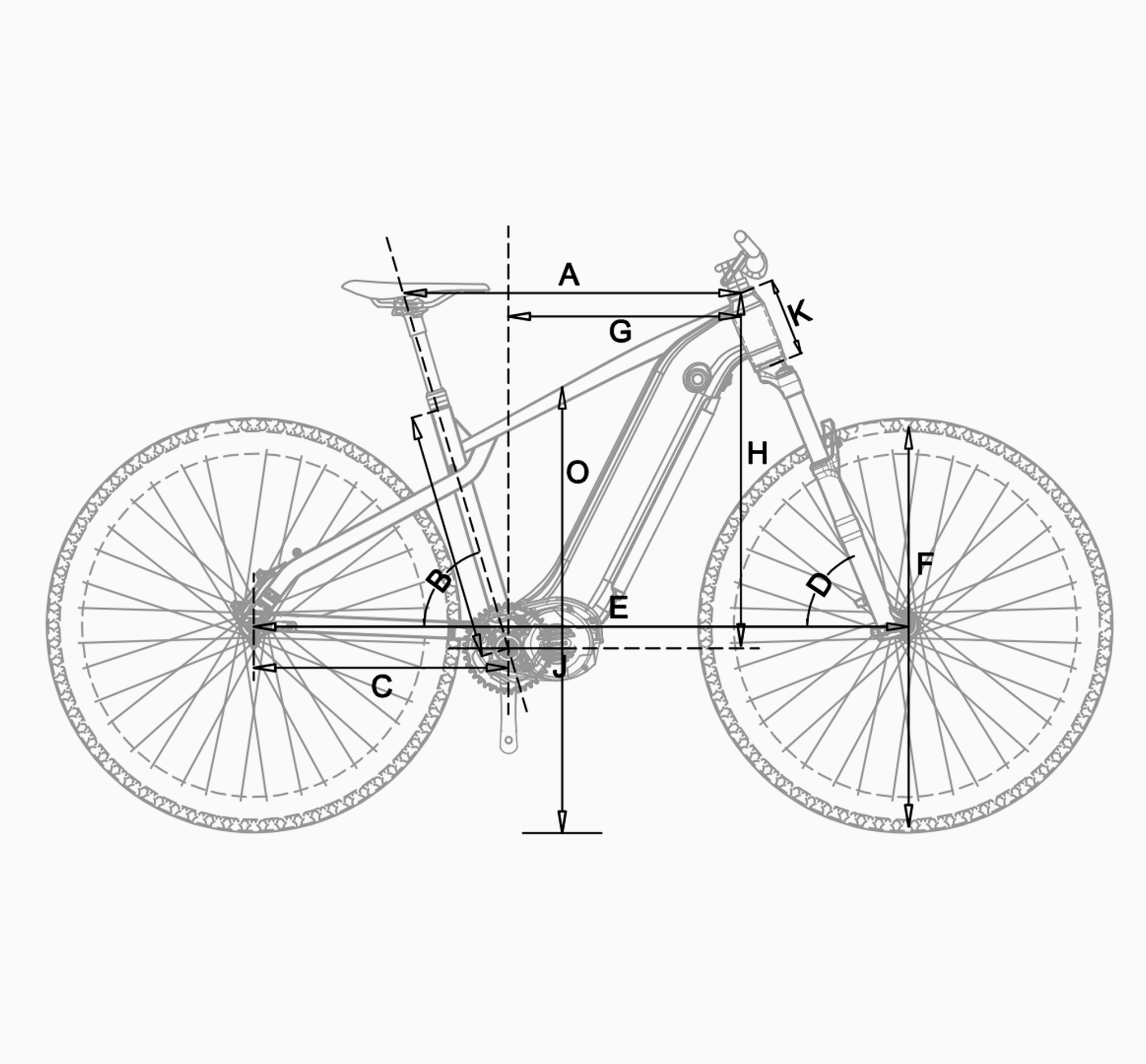

Geometries Unit: mm
HT1000 V2：27.5*27.5	M	L	XL
A TOP TUBE HORIZONTAL	603.4	620.8	649.2
B SEAT TUBE ANGLE	73.43°	73.43°	73.43°
C CHAINSTAYS	473.2	473.2	473.2
D HEAD TUBE ANGLE	67.35°	67.35°	67.35°
E WHEELBASE	1182.9	1200.3	1228.7
F WHEEL SIZE	27.5	27.5	27.5
G REACH	410.8	428.1	456.5
H STACK	659.8	659.7+10	659.8+20
I SEAT TUBE	420.6	460	490
J BB DROP	40.7	40.7	40.7
K HEAD TUBE LENGTH	145	145	145
O SPAN HEIGHT(Inseam )	846.4	840.9	834.8

Geometries Unit: mm
HT1000 V2：29*29	M	L	XL
A TOP TUBE HORIZONTAL	602.6	620	648.4
B SEAT TUBE ANGLE	73.3°	73.3°	73.3°
C CHAINSTAYS	473.2	473.2	473.2
D HEAD TUBE ANGLE	67.5°	67.5°	67.5°
E WHEELBASE	1189.6	1207	1235.4
F WHEEL SIZE	29	29	29
G REACH	413.5	430.9	455.5
H STACK	658	658+10	658+20
I SEAT TUBE	420	460	490
J BB DROP	42.7	42.7	42.7
K HEAD TUBE LENGTH	145	145	145
O SPAN HEIGHT(Inseam )	858.6	853	852.3
